Hot Selling Self-Propelled 4m 250kg Mini Scissor Lift Working Platform

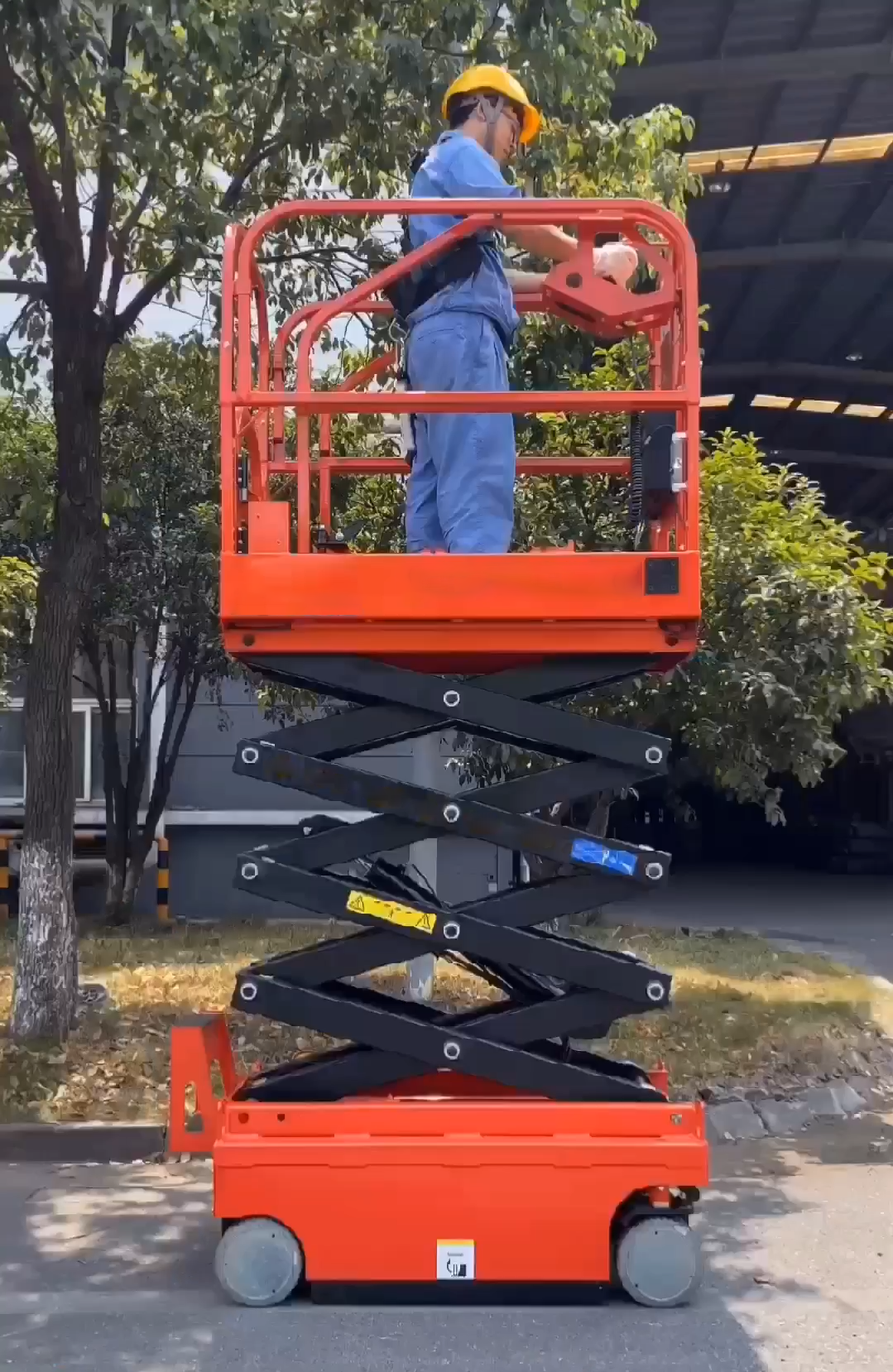

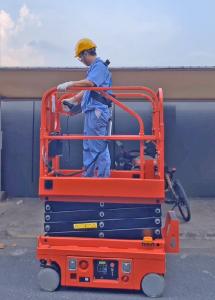

Mini Self propelled 4m 250kg mini scissor lift working platform
New aerial work platform developed by SIVGE has the work height at 6m, the vehicle width at 0.76m, the rated load at 250kg, max. gradeability at 30%. This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction. In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Standered configuration ● Proportion control
● Charging protection
● Automatic brake
● Tilt sensor alarm
● Fault diagnosis
● Energency stop
● Emergency lowering
● Pothole protection
● Foldable guardrails
● Extendable platform
● Bio-reducible hydraulic
● Flashing beacon
● Hour meter
● Self-lock gate
● Horn
● Action buzzer
● Safety Bracket
● Trackless tire
Main Features: * The latest DTC control system with fault diagnosis system and voice guide.
* Hydraulic driving with balance valve, travel brake is more stable.
* With optional configuration of DC power drive, battery life is longer.
* Equipped with quick Charger, it is more time-saving and efficient.
* Double loading system, using efficiency of equipment is much improved.
* Centered scissor arm design, the comfort and stability of platform is improved.
* Higher working height with same numbers of scissor arms.
* Adopting electrophoresis coated, anti-corrosion performance triply improved
Download Brochure: Z series scissor lifts-Sivge-2019.pdf
| Brand | SIVGE |
| Model | ZS60 |
| Platform height | 3.9 m |
| Working height | 5.9 m |
| Load capacity | 250kg |
| Table size | 1.27*0.7 m |
| Machine weight | 900 kg |
| Overall width | 0.76 m |
| Stowed size | 1.44*0.76*1.71 m |
| Driving mode | Self propelled |
| Lifting power | DC 24V |
APPLICATIONS:
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
PARAMETERS:
If the above specification cannot fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.
